Ultra-Thin Multi-Coating CPL Filter 67mm

CPL adopting the high quality polarizing film from Nitto of Janpan. It is not only clear up reflect light、take a photo for a true scenery, but also can control the contrast and color saturation of the pictute through the rotating CPL. Using CPL filter can clear up reflect light on the surface .
Material :Two pieces of super flat optical glass add one piece of Nitto polarizing film containing. Our CPL can bonding on the glass perfectly.Thus reached a higher precision parallel processing technology .
Performance:Increase the color saturation level ,then reached more definition and contrast ratio,at the same time not influence the integral colour balance.

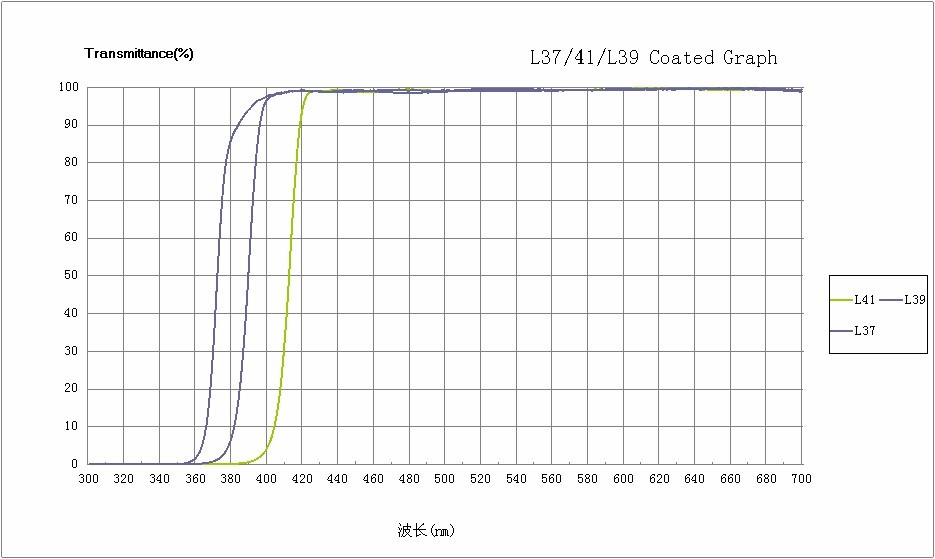

The following are general-purpose UV optical properties and absorption characteristics:

Size
UV
MC UV
CPL
MCUV WSP
CPLWSP
L37
L39
L41
M40.5mm





M43mm





M46mm
M49mm
M52mm
M55mm
M58mm
M62mm
M67mm
M72mm
M77mm
M82mm
M86mm
Glass material: Schottinstruments(SCHOTT)B270
Face shape accuracy: N5(1)
Double-faced coating comprehensive specifications:
300~350nm Tave≤1%
370±10nm T=50%
450~680nm   Tave≥99.5%
